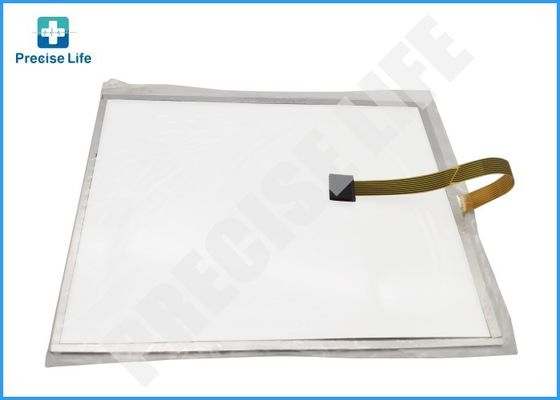

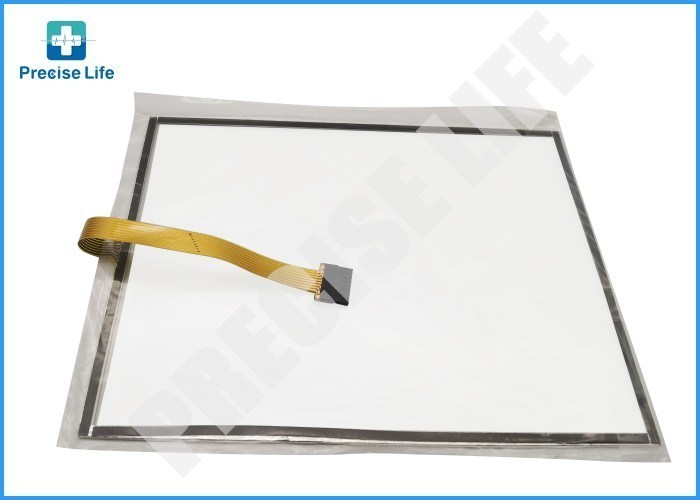

Carefusion Avea Touch screen 12.1 inch Avea ventilator touch screen glass

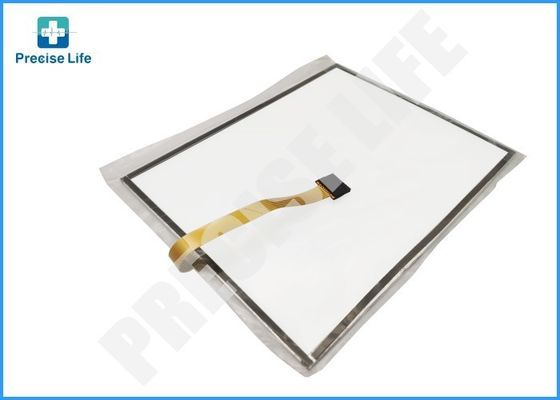

Carefusion Avea Touch screen 12.1 inch Avea ventilator touch screen glass

Description of ventilator parts:

The touch screen in conjunction with the LCD provides a set of software configurable soft keys. The software allows the keys to be context sensitive. The touch screen is a 12.1” analog resistive overlay on a piece of glass, which is placed over the LCD. It has a resolution of 1024x1024. Physically the touch screen, consists of two opposing transparent resistive layers separated by insulating spacers. Actuation brings the two opposing layers into electrical contact. The Y coordinate is determined by applying a voltage from top to bottom on the top resistive layer. This creates a voltage gradient across this layer.

The point of contact forms a voltage divider, which is read by the analog-to-digital converter. The X coordinate is determined by applying a voltage from left to right on the bottom resistive layer. Again this  creates a voltage gradient and the point of contact forms a divider, which is read with an analog-todigital converter.

Specification of ventilator parts:

Reference OEM P/N:

Note: All brands name above for reference only!
